Unexpected results with RecastNavmeshModifier and colliders

General Recast graph
1
  • A* version: 5.4.6
  • Unity version: 6000.3.11f1

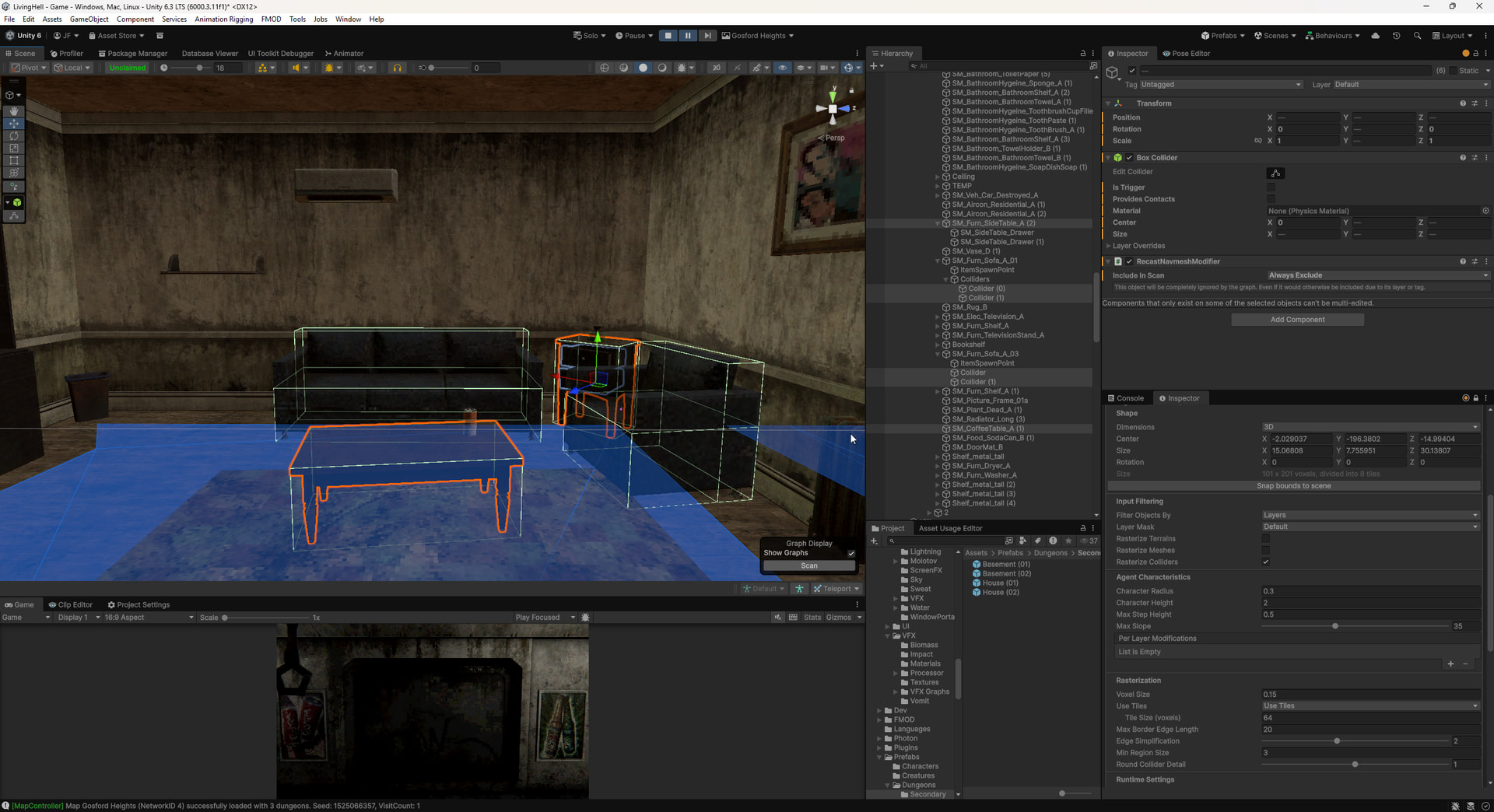

I am using RecastNavmeshModifier on some objects to make them unwalkable surfaces. However, as you can see from this first screenshot, the graph rises upwards as if it is trying to graph the top of a collider.

image1920×1044 347 KB

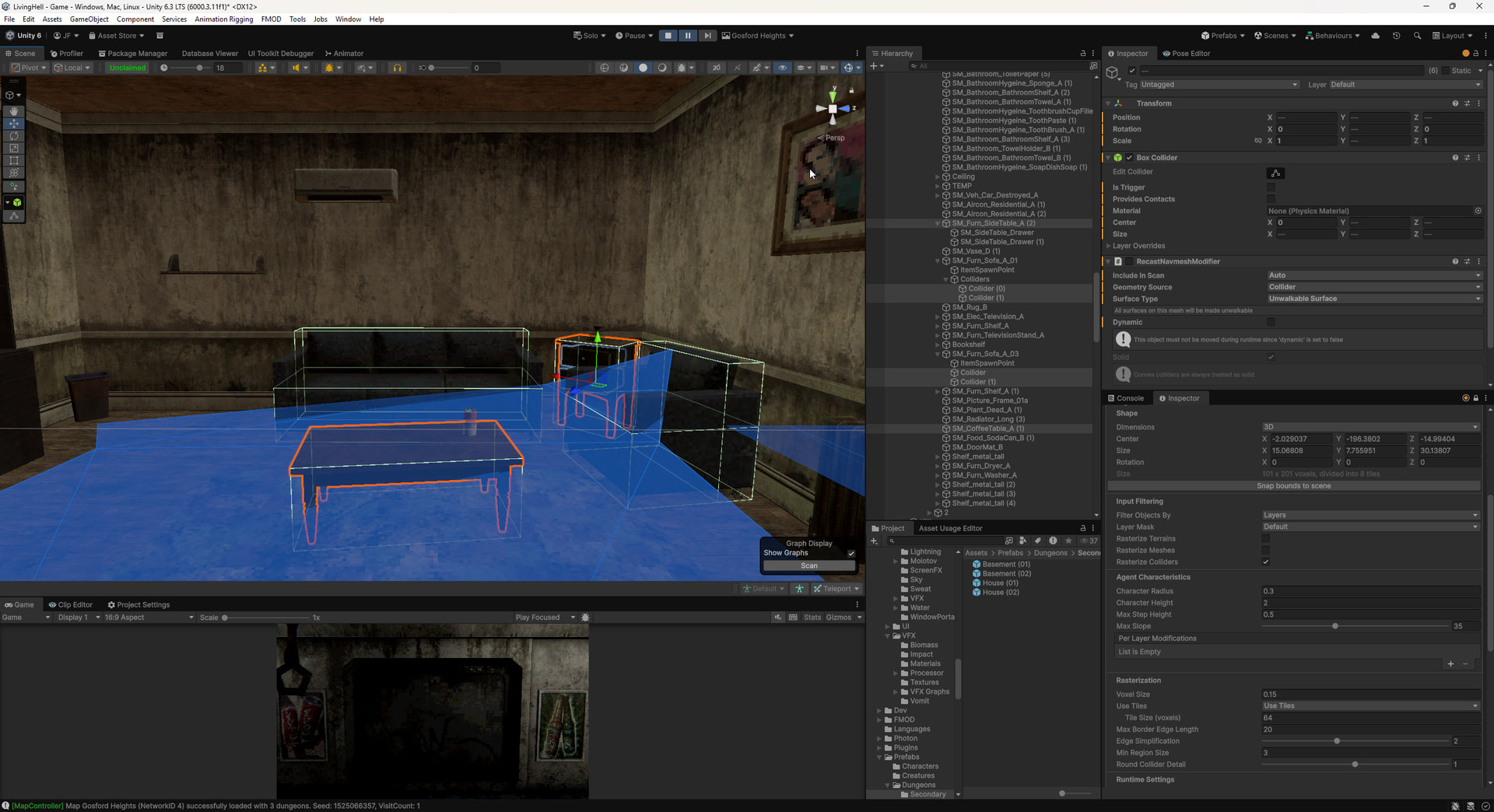

The components are definitely doing something because if I disable RecastNavmeshModifiier’s then the graph scans like this:

Unity_x23uCdbhf5
Unity_x23uCdbhf51920×1044 345 KB

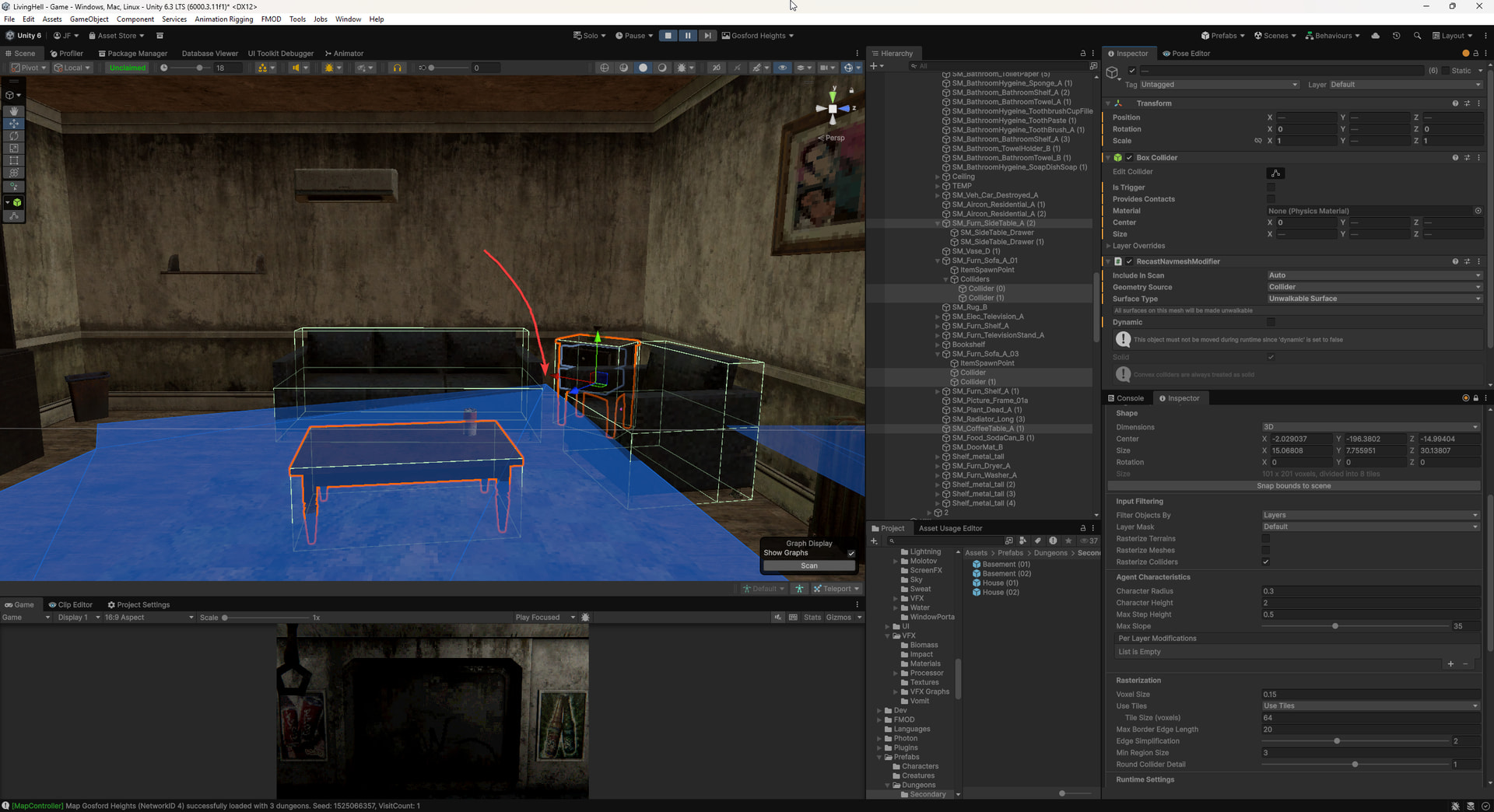

And to confirm its the selected colliders that are causing the issue, if I set RecastNavmeshModifier to AlwaysExclude then the graph becomes flat (but paths through the objects obviously).

Unity_fjy8gU4VuI
Unity_fjy8gU4VuI1920×1044 346 KB

Is this a bug?

2

If you’re able to I’d try and lower your tile size and go from there. If you’re still having issues with it I’ll try and recreate the scene and see what I can find out.
