Agent stuck to edge of graph

[DaDarkDan]

• A* version: 5.2.3
• Unity version: 6000.0.23f1

Hi there again,

I have an issue where an agents keep getting stuck to the edge (or close to) of a grid graph for no apparent reason.

I have been doing a lot of experimenting why this might be the case but I’m stuck, hence I’m here again
So far I’ve tried or confirmed:

• hasPath=true, canmove=true and isstopped=false for every frame
• node when stuck is always connected to walkable destination node
• most of the times the agent slightly rotates back and forth, like jittering
• sometimes it also super slowly moves (like 0.000001 in some direction) and after quite a while it manages to move on

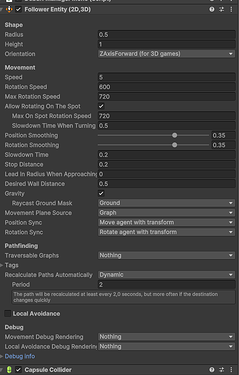

• I fiddled with desired wall distance, with agent radius, with grid graph diameter, node size and erosion in every direction to no avail
• agent collider is turned off (and had no collision with any object before whatsoever)
• sometimes when i disable the obstacle alltogether it moves on
• the destination of the followerEntity is only set sparcely, so this jittering does not come from that

Thankful for every help

Best regards,
Daniel

[tealtxgr]

Are you using local avoidance? Also that video isn’t playing nor downloading on my end. May want to try reencoding/reuploading it?

[DaDarkDan]

Oh you’re right, damn.

2025-04-13 10-39-04.mp4

Maybe this works for a while longer…

I am not using local avoidance

[aron_granberg]

Hi

Would you mind setting A* Inspector → Settings → Graph Coloring = Hierarchical Node Obstacles, and see if you see an unexpected obstacle in front of the agent?

[DaDarkDan]

I am not quite sure what I am seeing here.

In “GraphColoring = hierarchical node” there are some white boxes

in “GraphColoring = NavMesh Border Obstacles” too.
